SCIM User Provisioning

SCIM (System for Cross-domain Identity Management) lets your identity provider create and remove Vagon team members automatically. When someone joins the directory group you sync, Vagon invites them to your organization; when they leave it, their membership is removed and their computer is released — without an admin doing anything by hand.

Vagon supports SCIM 2.0 so any compliant identity provider can connect to it. This guide walks through Microsoft Entra ID (Azure AD), which is the most common setup.

Only Team Owners and Admins can configure SCIM.

• Provisioning creates a pending invitation, not a membership. The person becomes a member when they accept — normally the first time they sign in through SSO, or via the invitation email. Invitations are valid for three months.

• No computer is ever assigned automatically. Assigning a computer stays an explicit action by a team admin.

• Deprovisioning is immediate. The membership is removed, the computer is released, and the person's access tokens are revoked.

SCIM and SSO are independent. SCIM authenticates with its own token and works with or without Microsoft Entra (Azure AD) Login configured. They're commonly used together — with SSO enabled, invited people are enrolled automatically on first sign-in instead of having to click a link in an email.

Prerequisites

• A Vagon Teams organization, with Owner or Admin access.

• Access to the Microsoft Entra admin center with permission to register applications.

---

Step 1 — Set up SCIM in Vagon

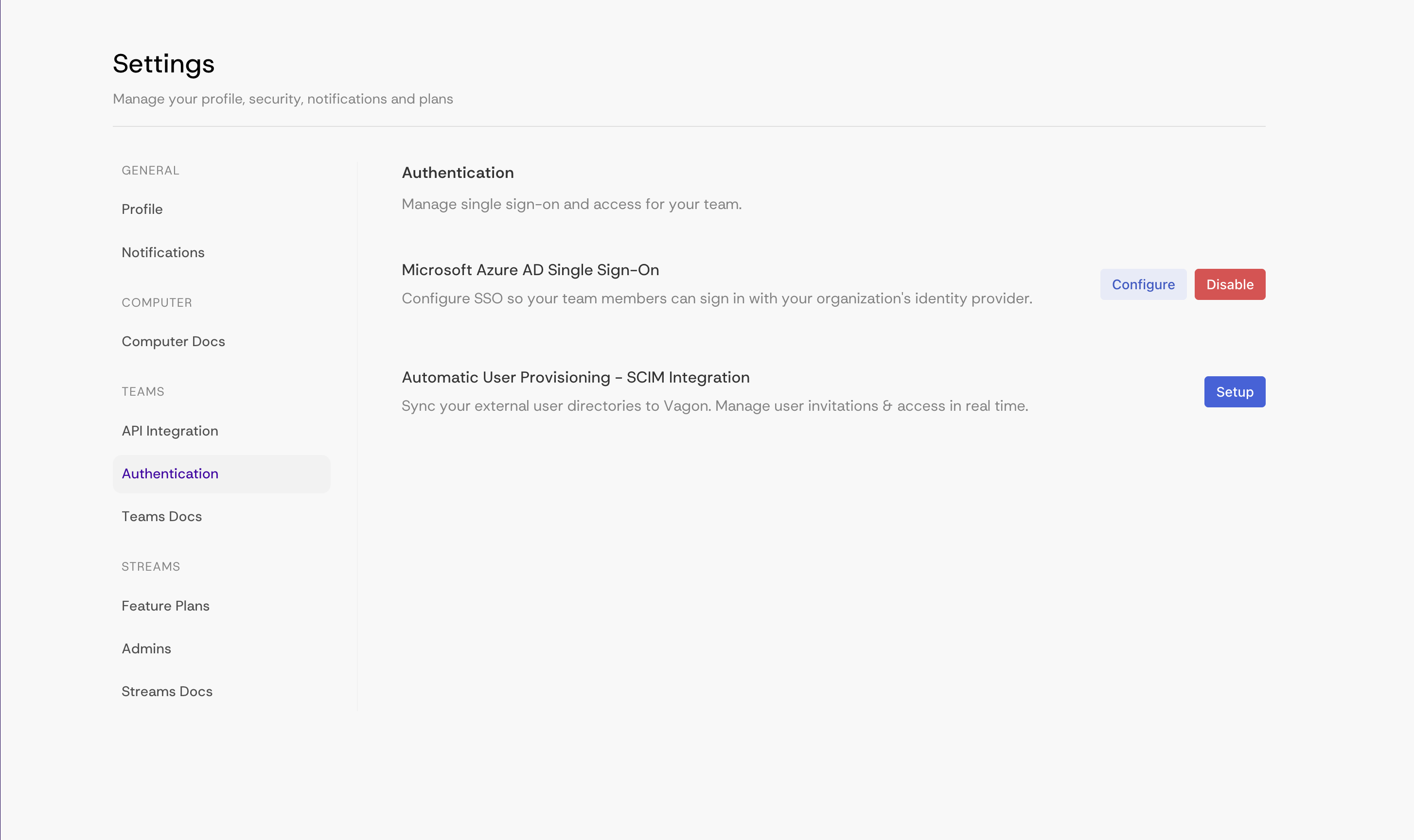

1. Go to Settings → Authentication in your Vagon Team Console and find Automatic User Provisioning – SCIM Integration.

2. Click Setup.

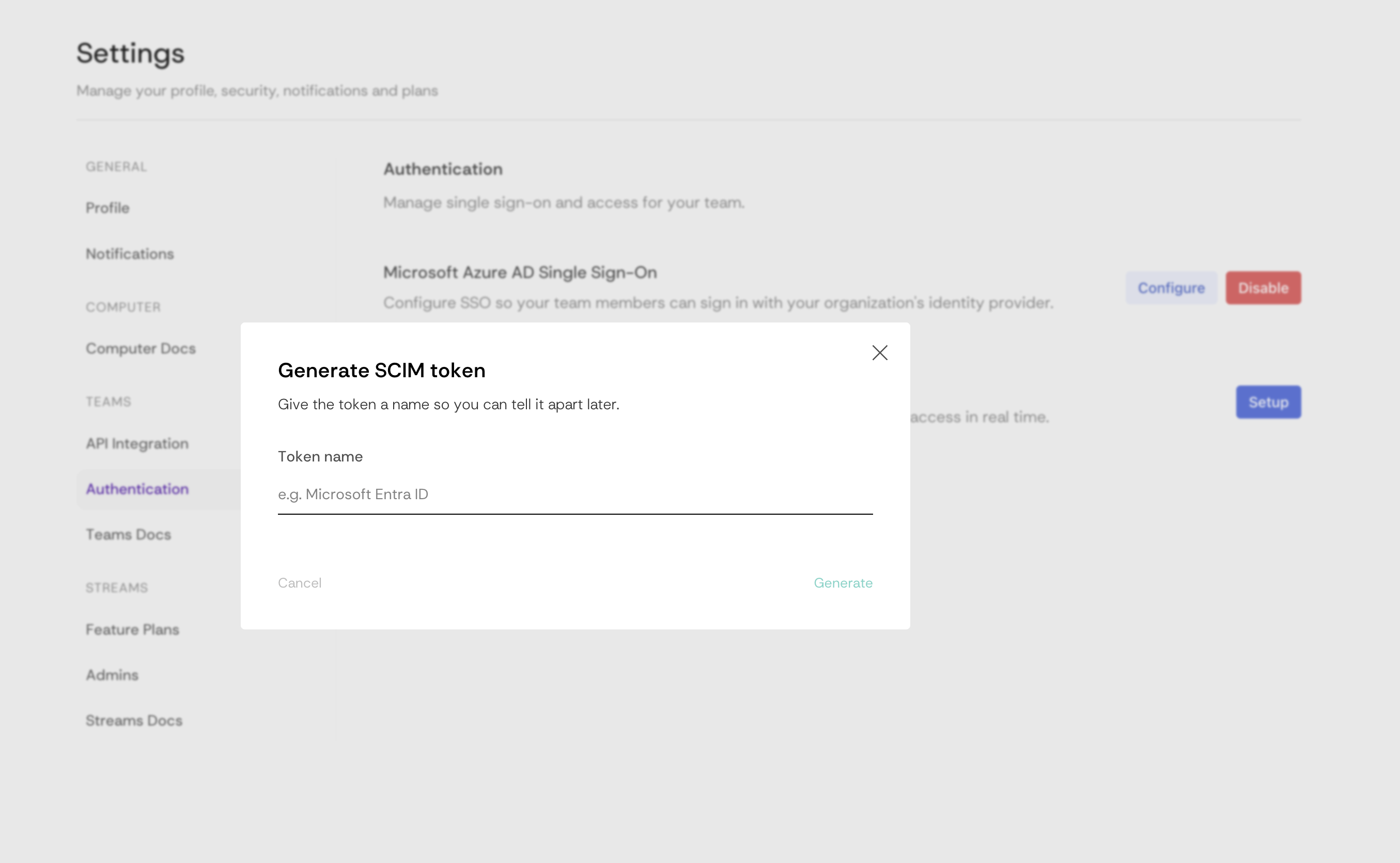

1. Give the token a name so you can tell it apart later — name it after the identity provider you're connecting, for example Microsoft Entra ID. Click Generate.

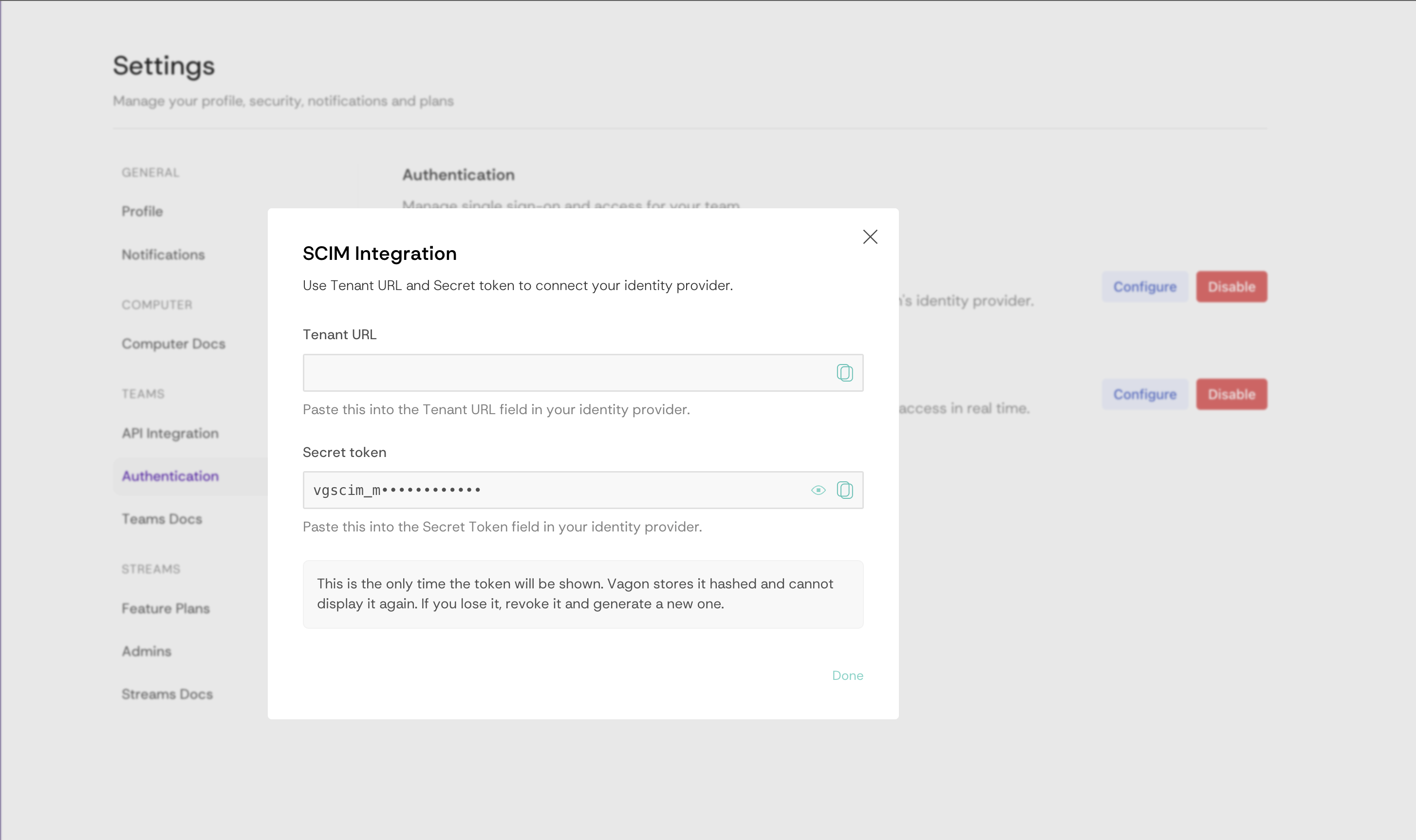

1. Vagon shows you two values. Copy both now — you'll paste them into Microsoft Entra in Step 3. Then click Done.

   • Tenant URL — the SCIM endpoint for your organization.

   • Secret token — the bearer token your identity provider authenticates with.

The secret token is shown only once. Vagon stores it hashed and cannot display it again. If you lose it, disable the integration and set it up again with a new token.

Always copy the Tenant URL from your own dashboard rather than typing it by hand. Keep the path exactly as shown — it is case-sensitive, so /scim/v2/Users resolves and /scim/v2/users does not.

Your organization holds one active SCIM token at a time, and tokens are not scoped — every token for an organization can see and modify the same resources. This means you connect one identity provider per organization.

Step 2 — Create the application in Microsoft Entra

Vagon is not in the Microsoft Entra app gallery, so you register it as a custom (non-gallery) application.

1. Open the Microsoft Entra admin center and go to Identity → Applications → Enterprise applications.

2. Click New application → Create your own application, choose "Integrate any other application you don't find in the gallery", give it a name (for example, Vagon), and click Create.

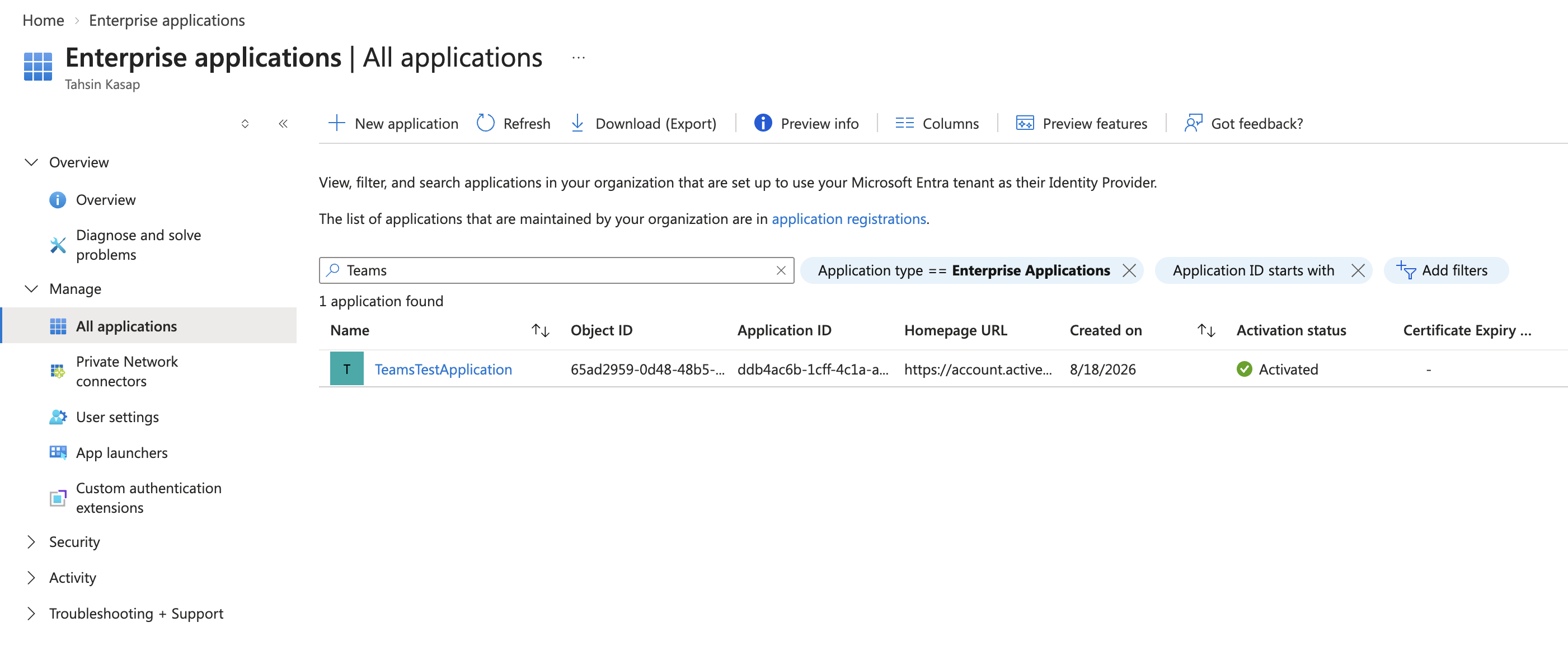

3. Open the application you just created from the All applications list.

If you already registered Vagon for Microsoft Entra SSO, you can reuse that same enterprise application here instead of creating a second one — just open it and continue from Step 3.

Step 3 — Connect provisioning to Vagon

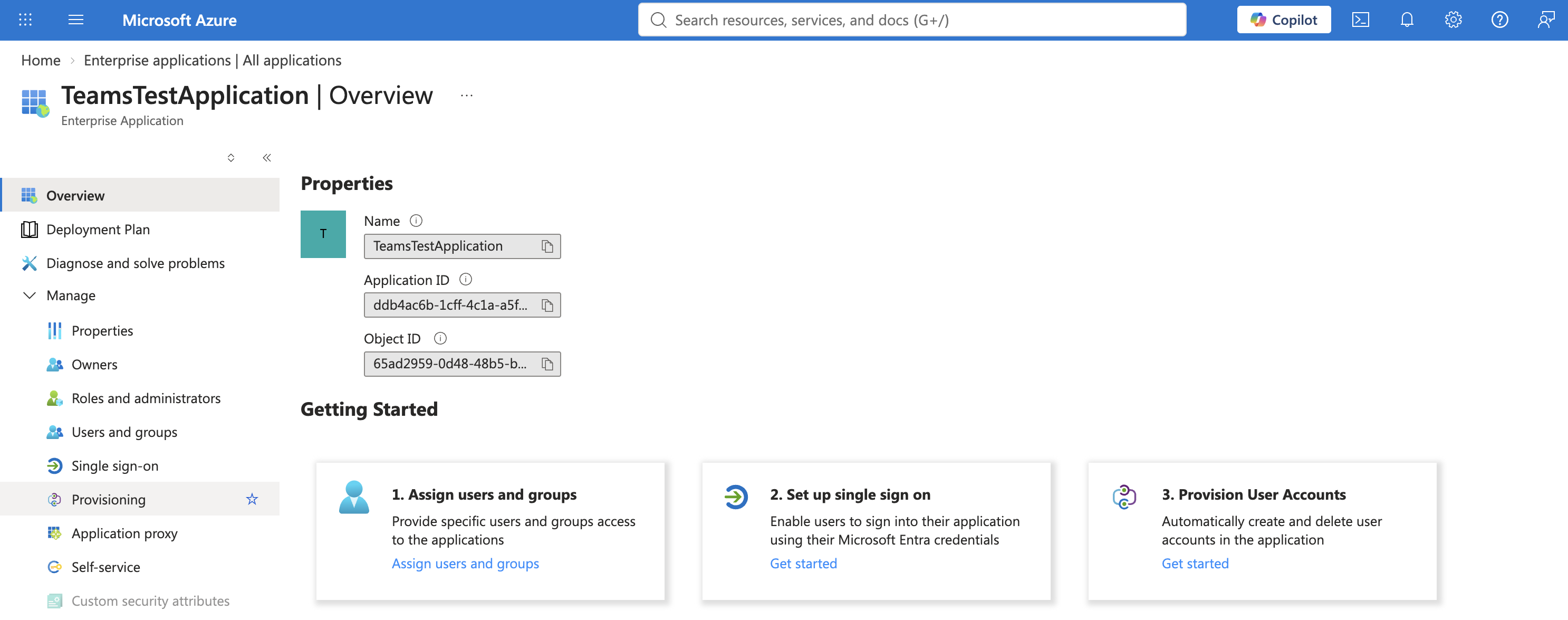

1. In the application's sidebar, open Provisioning.

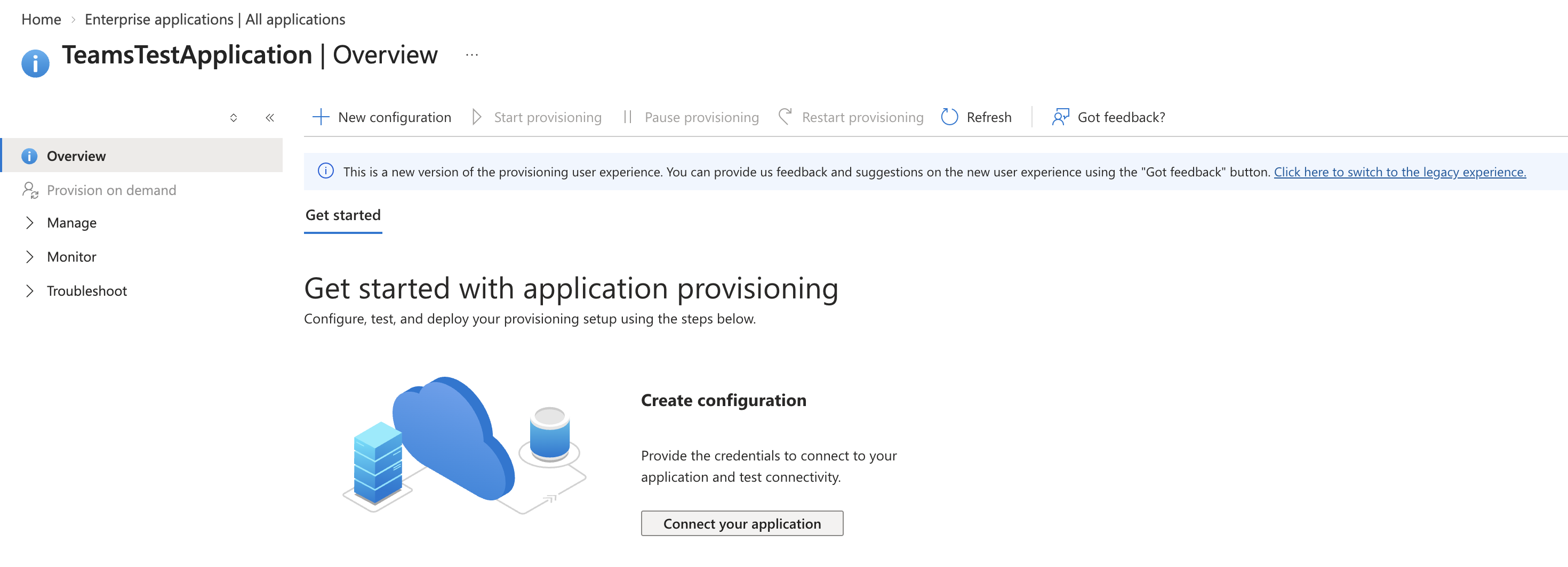

1. Click New configuration (or Connect your application on the Get started panel).

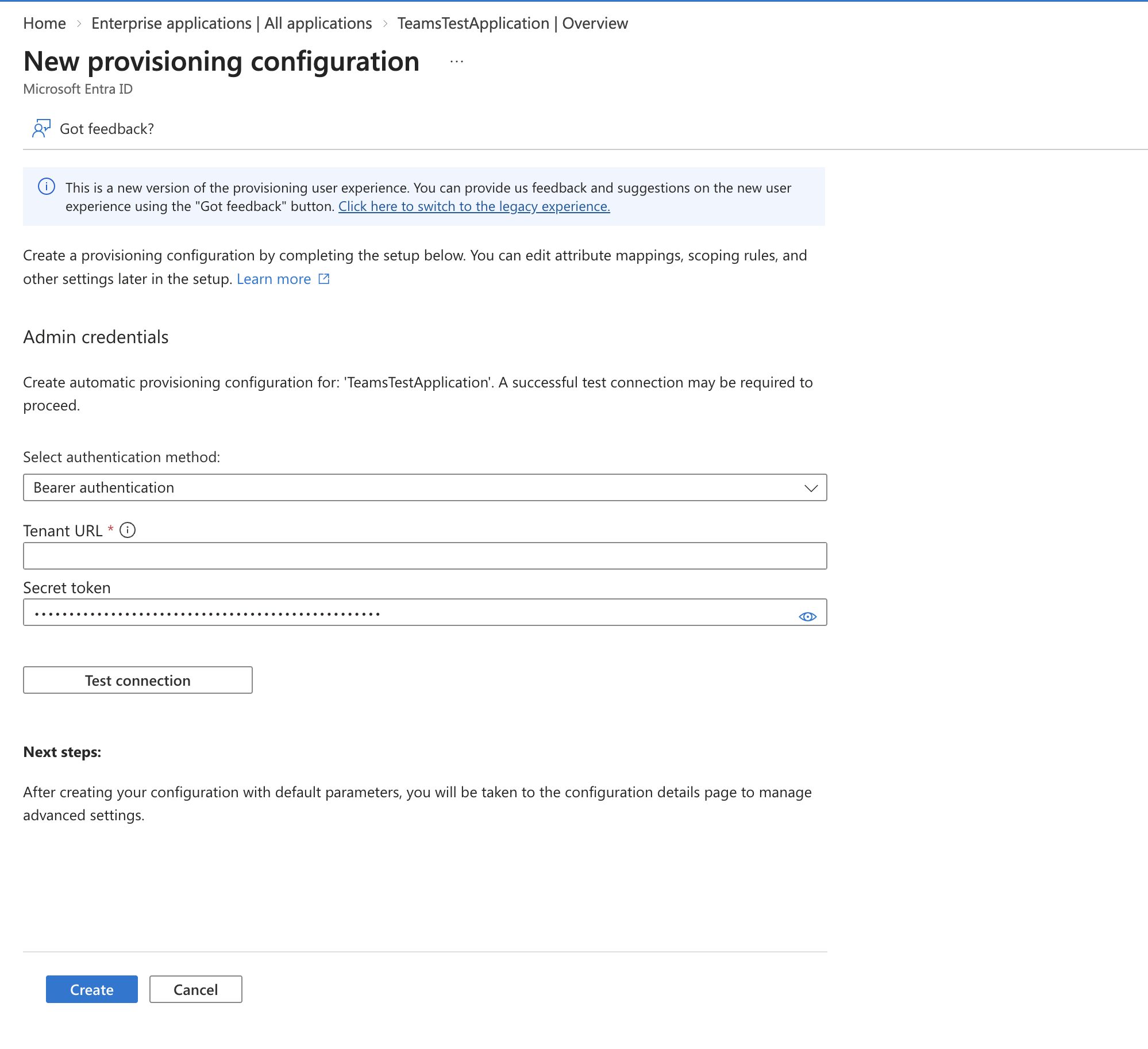

1. Fill in the Admin credentials:

Entra field	Value
Select authentication method	Bearer authentication
Tenant URL	The Tenant URL you copied from Vagon in Step 1
Secret token	The Secret token you copied from Vagon in Step 1

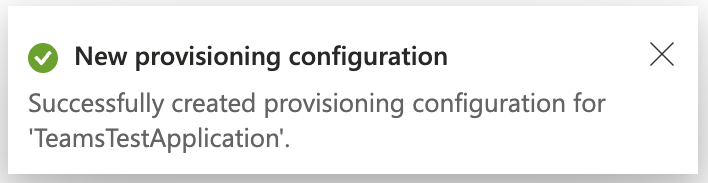

1. Click Test connection. You should see Connection test was successful. Then click Create.

Microsoft Entra offers a new and a legacy provisioning experience, and the screenshots here use the new one. On the legacy screens the same step is Provisioning Mode: Automatic → Admin Credentials; the fields and the values you paste are identical.

Step 4 — Choose who gets provisioned

Vagon only creates the users Entra sends it, so scope the sync deliberately.

1. Under the provisioning configuration, open Manage → Provisioning settings and set Scope to Sync only assigned users and groups.

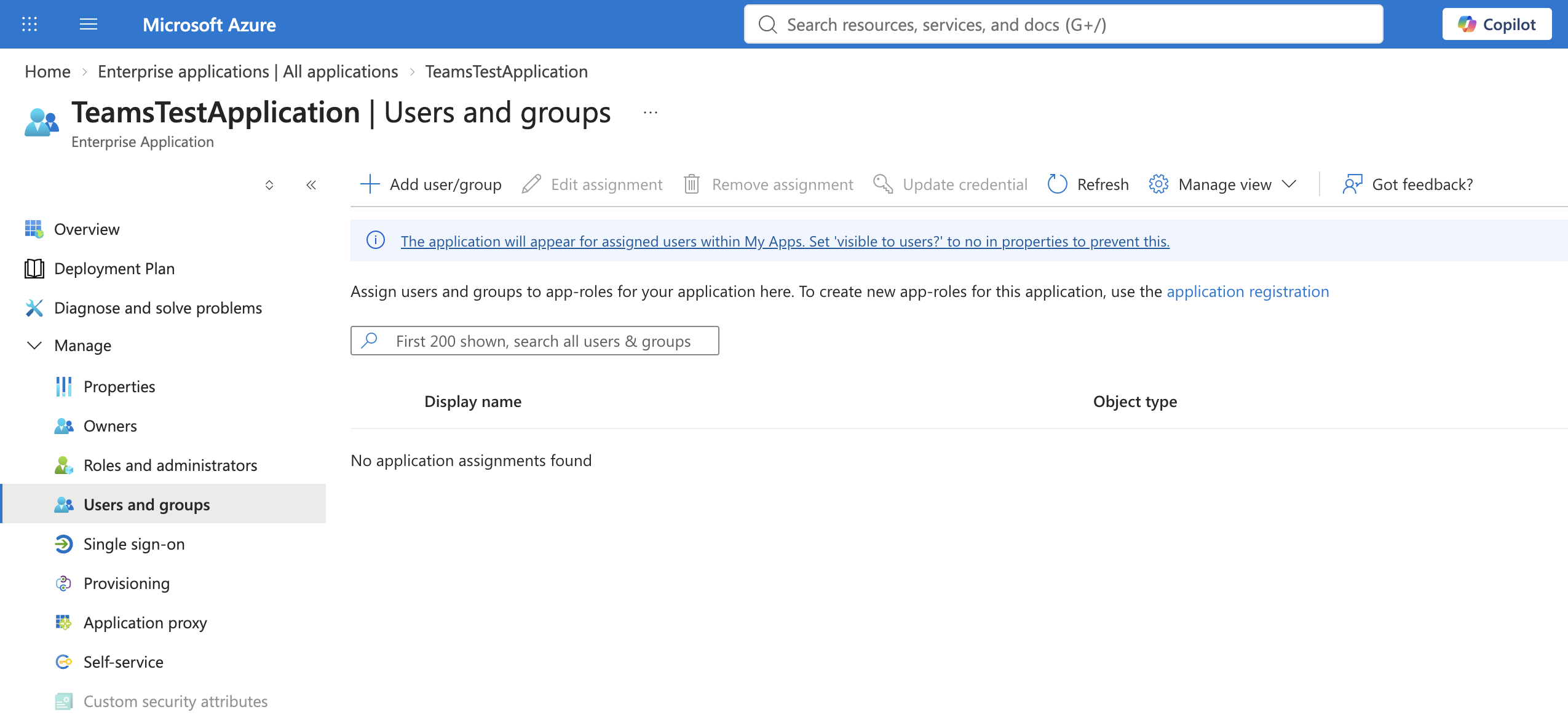

2. Go back to the application and open Users and groups.

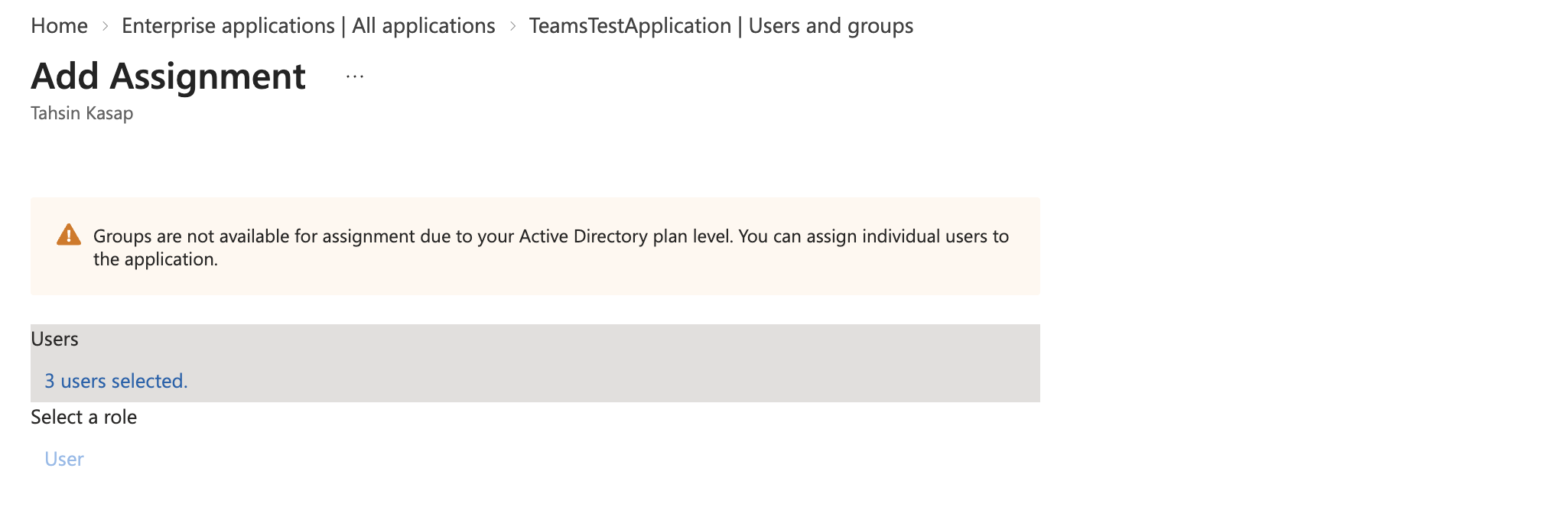

1. Click Add user/group, select the people (or groups) who should have Vagon access, and click Assign.

Keep the matching attribute as userName. Vagon supports filtering on userName and externalId only, so matching on any other attribute will fail.

Step 5 — Provision admins automatically (optional)

By default everyone provisioned through SCIM joins as a member. If you want your directory to decide who is an organization admin, map Vagon's isAdmin attribute.

1. Open Manage → Attribute mapping, select the Provision Microsoft Entra ID Users mapping, and click Edit attribute list (shown as customappsso).

2. At the bottom of the list, click + Add new attribute and add:

   • Name — urn:vagon:params:scim:schemas:extension:2.0:User:isAdmin

   • Type — Boolean

3. Click Save.

4. Back in Attribute mapping, add a mapping that assigns a value to isAdmin — for example from an app role or a directory attribute.

Vagon accepts the attribute under its full URN or as a plain isAdmin, which is what Entra sends if you leave the URN off the attribute name. Either works.

How Vagon interprets isAdmin:

• Not sent at all means unchanged. A directory that doesn't map isAdmin will never demote your existing admins. Only an explicit false demotes someone to member.

• The organization owner is never affected. isAdmin cannot grant or remove ownership — admin is the highest role SCIM can assign.

• A demotion revokes that person's access tokens, so admin privileges stop immediately rather than lasting until their session expires. Promotions don't revoke anything.

• If the person hasn't accepted their invitation yet, the role is recorded and applied the moment they do.

Set the source attribute before the user enters scope. Entra omits empty source attributes from the payload entirely, so a user created in Vagon before isAdmin has a value arrives as a member — the role then follows on the next sync cycle once the value changes. The same applies if you add the mapping after users are already syncing. Use Restart provisioning to force a full re-sync, or Provision on demand to push one user immediately.

Step 6 — Test, then turn provisioning on

Before switching the sync on for everyone, push a single user through it.

1. Open Provision on demand, pick one assigned user, and run it.

2. All four steps — Import user, Determine if user is in scope, Match user between source and target system, Perform action — should report Success. Open View details on Perform action to see exactly which attributes were sent.

3. Check that the person received a Vagon invitation, then set Provisioning Status to On and save.

Microsoft Entra runs an initial full sync immediately, then an incremental cycle roughly every 40 minutes. Changes you make in your directory won't appear in Vagon instantly — use Provision on demand when you need one user pushed through straight away.

---

Managing the integration

Once SCIM is set up, the Automatic User Provisioning – SCIM Integration row in your Authentication settings offers Configure and Disable instead of Setup. Configure shows the active token, its name, and when it was last used.

• Rotating a token — disable the integration, set it up again to generate a new token, and paste the new value into Microsoft Entra. Provisioning pauses in between, which in practice is one sync cycle.

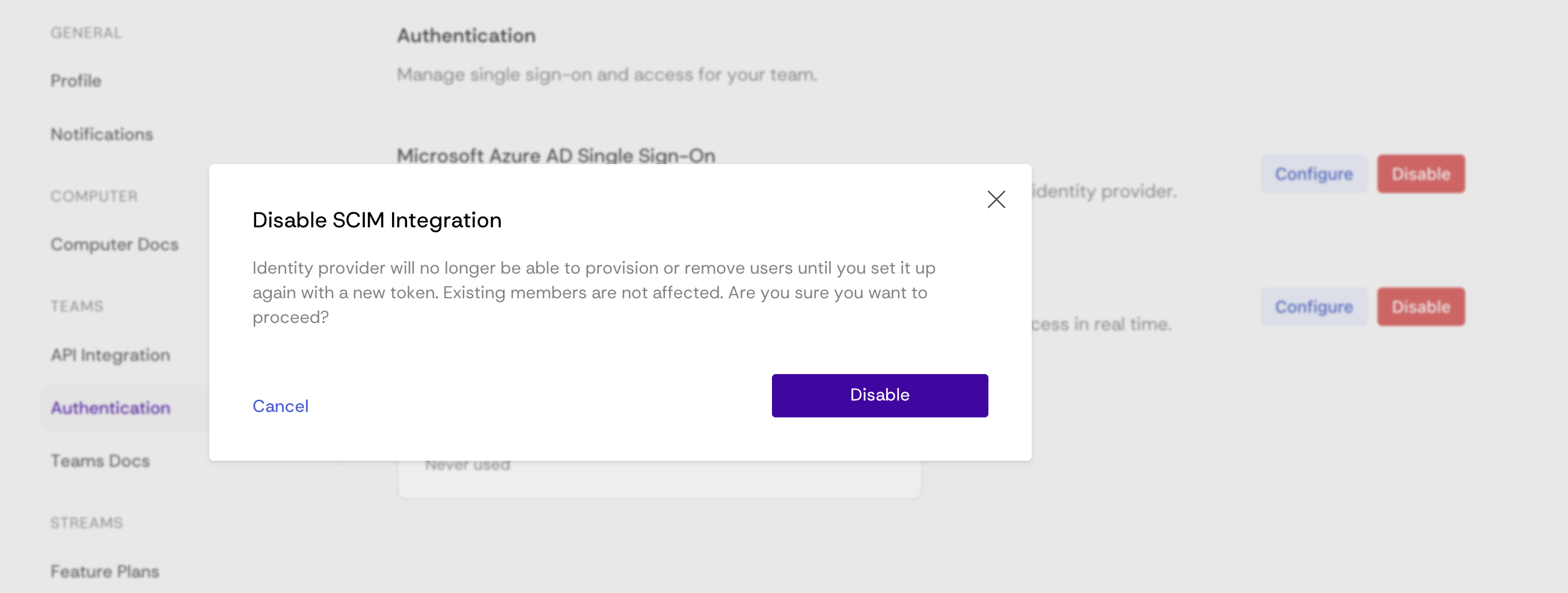

• Disabling the integration — your identity provider can no longer provision or remove users until you set it up again with a new token. Existing members are not affected — nobody loses access, and nobody is deprovisioned, because you turned SCIM off.

Disabling SCIM stops the sync but leaves your team exactly as it is. If you need to remove someone's access, do it in Vagon or in your directory — turning the integration off won't do it for you.

If you need help, reach out to us at [e-mail].
